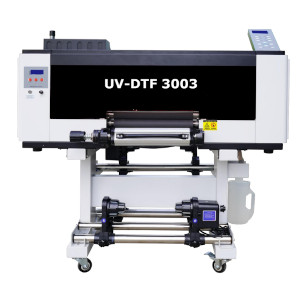

AMO A3 Size UV DTF AMO 3003 with 3 pieces of XP600 Printheads
AMO A3 Size UV DTF AMO 3003 with 3 pieces of XP600 Printheads
1. With its flexible customization ability and wide applicability, UVDTF has become the preferred solution for small-batch personalized production, which is mainly used in the fields of gift customization, advertising identification, etc., such as personalized stickers for tea boxes, wine bottles, cosmetics packaging, and identify production for some irregular objects;
2. It breaks through the limitation of traditional printing on materials, and can be transferred to almost all solid surfaces such as metal, glass, ceramics, wood, plastic, cloth, stone, etc., especially suitable for irregular or curved objects (such as cup body and curved mobile phone case);
AMO A3 Size UV DTF AMO 3003 with 3 pieces of XP600 Printheads
Printt width:300mm
Specification:
Headsets: Epson XP600
Head quantity: 3 pieces
Speed:
High quality model :1.4 square meters/hour
Fast production mode:3 square meters/hour
Feeding Width:300mm
Media Transmission:Resistance Bilateral Adjustable Paper Placement System
Color:Six colors (c/M/y/K/V/w)
Ink Type :Special ultraviolet ink for glass labels
Communication Interface :Network Port
Operating Language :Chinese / English
Printing software :Maintop6.1 / photoprint (optional)
Operating System :Win10/Win7
Printing Media :A/B Film
Head Cleaning:Automatic Ink Battery Cleaning System
Configuration:
Servo motor high quality X-axis stroke
High quality chuchen large torque motor shaft and + high precision reducer
Bilateral Resistance Adjustable Disconnect System
Hiwin Silent High Speed Linear Guide
Automatic mixing system for white ink. Ink Solidification Setting: High Power Air Cooled Ultraviolet Lamp
The ink path increases the filter, the high quality filtration system
Automatic Rubber Roller Lifting System
Waste collection film: swing bar squeezes Smart Energy Waste collection film
Ink shortage alarm setting: automatic ink shortage alarm system
Paper coating configuration: high precision roller, temperature control roller intelligent heating
Paper shortage alarm: equipped with paper shortage alarm induction function
Ink Type: Eco-friendly special ultraviolet ink, beautiful color and high durability
Color control: International standard ICC color control, user-adjustable curves and density and other functions.
Working Environment:15 - 30°C/40% - 60%
Equipment power:1200w
Package Weight:100kg
Size of whole machine:1525*725*755mm (packing size) 1200*500*1166mm (equipment size)
Recommended computer configuration:
Operating System Win7/win10 Gigabit Network Card Standalone Graphics Card 8g - Memory 500g Hard Drive tnel(r)CORE(tm)i5/i7cpu
